Bartscher Compact One Combination Steamer 5 × GN 2/3 – Right-Hand Door Hinge
Bartscher Compact One Combination Steamer 5 × GN 2/3 – Right-Hand Door Hinge
incl. VAT CHF 6'114.46Prices for business customers, excl. VATFree delivery from CHF 500 in CH & FL
Delivered by freight carrier to the kerbside. Stairs, no lift or narrow doors? Please let us know before ordering. Delivery terms
- Invoice for business customers (subject to approval)
- 30-day returns on stock items (by arrangement)
- Installation & service by our own technicians
- Secure payment
Connection check
What your business needs for this appliance
- Power400 V, 3N AC, 5.2 kW / CEE 16
- PlugType 25
- Water/drainInlet ¾″, drain hose inner Ø 30 mm, outer Ø 38 mm
- External dimensions (W × D × H)535 × 662 × 649 mm
- Weight55 kg
Gas, high-voltage and water connections must be installed by qualified professionals.
Not sure it fits? We will check your connection.
The Bartscher electric combi oven holds 5 GN 2/3 trays or containers (inserted lengthwise) and operates at temperatures up to 260 °C. It is operated via the MASTER.Touch ONE control panel with a 7" touch display: 256 programs can be saved, and cooking processes can be recorded using MIND.Maps. Automatic cleaning programs, a rounded cooking and baking chamber, and a hinged inner door pane make cleaning easier. Two units can be stacked using the KombiDuo mounting kit.
Ideal for: Restaurants · Hotels · Catering · Canteens
- Automatic cleaning programs – less manual cleaning
- Rounded cooking and baking chamber – easier to clean
- Hinged inner door pane – makes the door glazing easy to clean inside as well
- MIND.Maps and 256-program memory – record cooking processes and repeat them exactly at any time
- Stackable with KombiDuo mounting kit – two units on the same floor space
| Capacity | 5 GN 2/3 inserts, 67 mm insert spacing, inserted lengthwise |
| Operation | Electric |
| Temperature range | up to 260 °C |
| Control | MASTER.Touch ONE, 7" touch display, USB interface |
| Programs | 256 savable |
| Fan | 4 speeds plus 4 semi-static modes |
| Door | Double door glazing, hinged inner pane, right-hand door hinge, LED in the door |
| Internet connection | Ethernet or Wi-Fi as external accessory |
| External dimensions (W × D × H) | 535 × 662 × 649 mm |
| Connection | 400 V, 3NAC, 5.2 kW, Type 25 / CEE 16 plug |
| Water connection | 3/4" |
| Water drain | Drain hose, inner Ø 30 mm, outer Ø 38 mm |
| Stackable | yes, with KombiDuo mounting kit |
| Material | Stainless steel, glass |
| Weight | 55 kg |
| Item no. | XECC-0523-E1LM |
Scope of delivery: Core temperature probe, mounting kit for initial installation, 1 liter UNOX.Det&Rinse ULTRAPLUS cleaning agent.
Frequently Asked Questions
Can I stack two units?
Yes. Two units can be stacked using the KombiDuo mounting kit.
Do I need a 400 V connection?
Yes, 400 V, 3NAC, 5.2 kW, Type 25 / CEE 16 plug.
What water connections does the unit require?
A 3/4" water connection and a drain for the drain hose (inner Ø 30 mm, outer Ø 38 mm).
Delivery & installation
For the guarantee to apply, installations must be carried out by qualified specialists. We are happy to do this for you – just ask us.
Appliances without plug or connection cable: installation only by a specialist or an electrician.
Gas appliances: installation and gas type conversion only by a specialist or a plumber.
Large refrigeration units (e.g. cold rooms): installation by a specialist or a refrigeration technician.
Appliances with a fixed water connection (e.g. dishwashers, ice makers): professional installation with suitable water treatment.
Product images may differ from the original product.
Matching accessories
Mehr aus dieser Kategorie: Combi Steamers
- HENDI Combi Steamer with Grill – 4 × GN 2/3, 230 V CHF 2'230.80

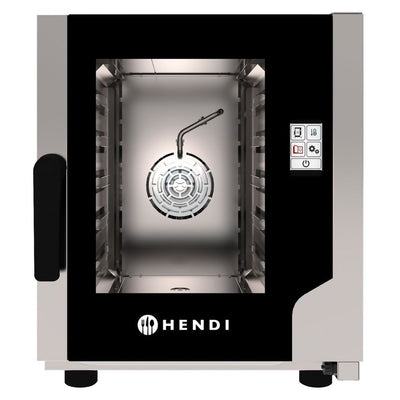

- HENDI Combi Steamer Snack 5 × GN 2/3 – Touchscreen, 230 V CHF 3'413.80
