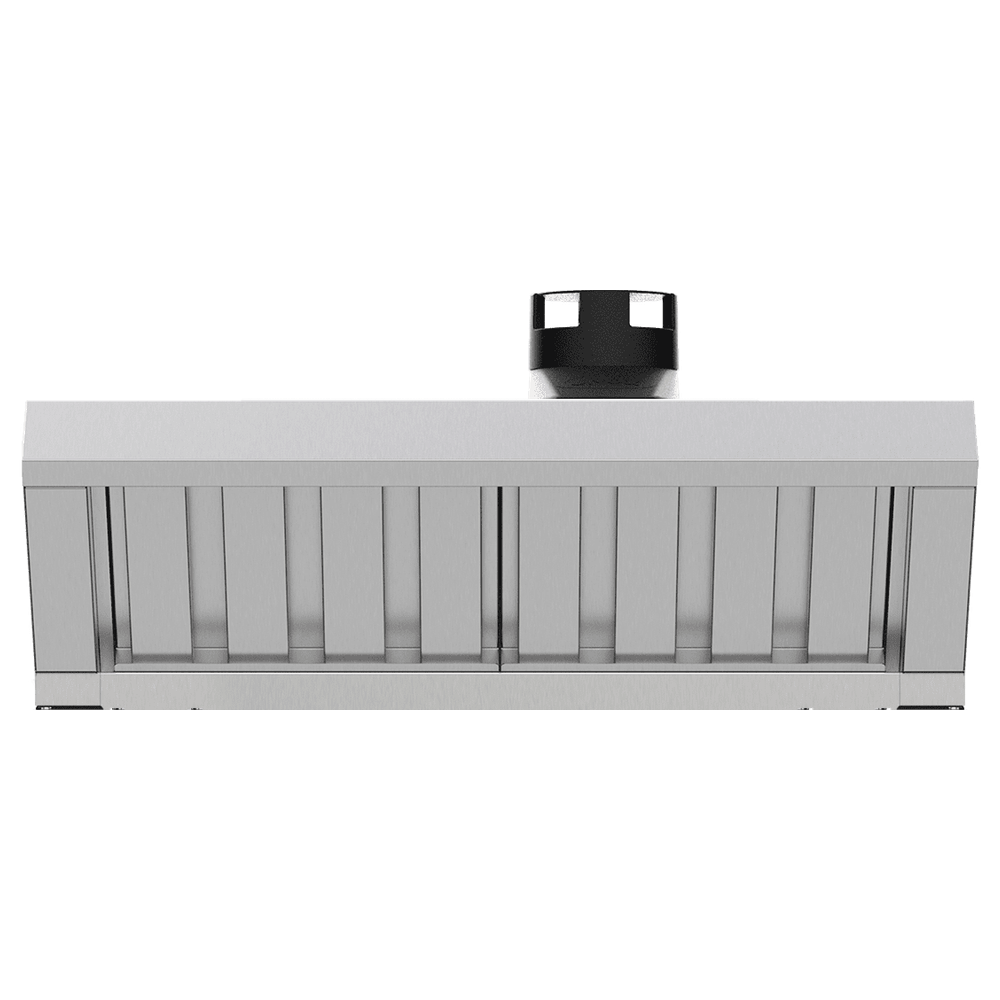

Bartscher extractor hood for ChefTop GN 1/1 – steam condenser
Bartscher extractor hood for ChefTop GN 1/1 – steam condenser
incl. VAT CHF 2'176.11Prices for business customers, excl. VATFree delivery from CHF 500 in CH & FL
Technical question about this appliance? Our technician can help: 0432 00 0432 · Email
- Invoice for business customers (subject to approval)
- 30-day returns on stock items (by arrangement)
- Installation & service by our own technicians
- Secure payment
The Bartscher extractor hood is designed for the Elektrogeräte ChefTop GN 1/1. Its integrated steam condenser condenses the steam directly at the hood; for this, it requires a 3/4" water connection and a drain. The hood is made of stainless steel and is connected to 230 V and 0.2 kW via a Type 12 plug.
Ideal for: Restaurant · Hotel · Catering · Canteen
- Integrated steam condenser – less steam and humidity in the kitchen
- Suitable for Elektrogeräte ChefTop GN 1/1
- 3/4" water connection with drain hose – for operating the steam condenser
- 230 V, Type 12 plug – connection to a standard socket
| Suitable for | Elektrogeräte ChefTop GN 1/1 |
| External dimensions (W × D × H) | 750 × 956 × 240 mm |
| Connection | 230 V, 0.2 kW, Type 12 plug |
| Water connection | 3/4" |
| Water drain | Drain hose Ø 30 mm inside, Ø 38 mm outside |
| Material | Stainless steel |
| Weight | 23 kg |
| Item no. | XEVHC-HC11 |
Frequently Asked Questions
Do I need a water connection?
Yes. The hood has a 3/4" water connection and a drain hose (Ø 30 mm inside, Ø 38 mm outside).
Do I need a high-voltage connection?
No. The hood requires 230 V with 0.2 kW and has a Type 12 plug for a standard socket.
